How does it Work?

Add

Control

Head Lights

Ember

12V Source

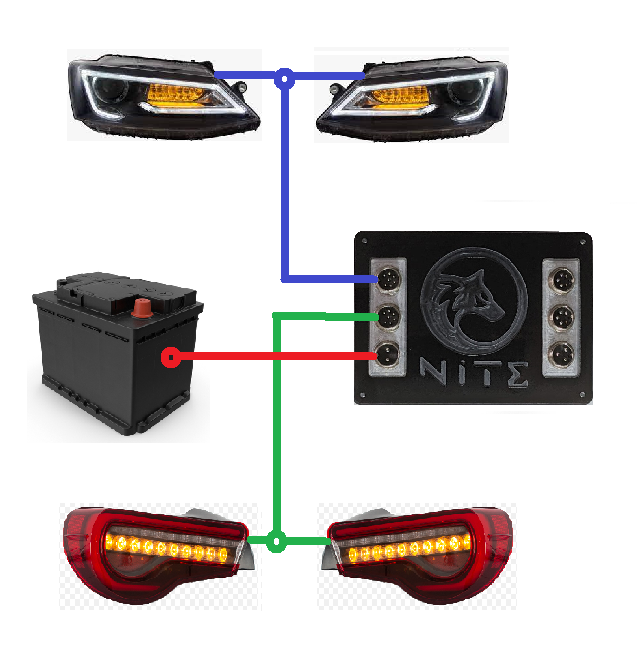

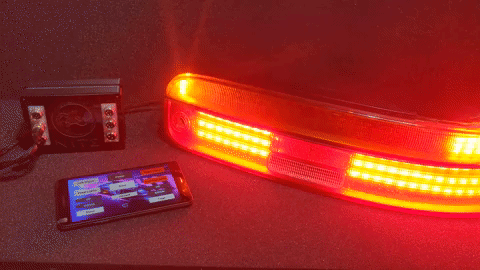

In short, the Ember is a device added to the vehicle and gives the user a touch screen interface for head lights, tail lights, turn signals and more. It is setup to control 12V headlights and high beams and has built in power conversion for 5v LED tails, brakes and signals. An internal microcontroller is preconfigured to drive serial LEDs. This allows for animated signals and lights.

Tail Lights

Connect

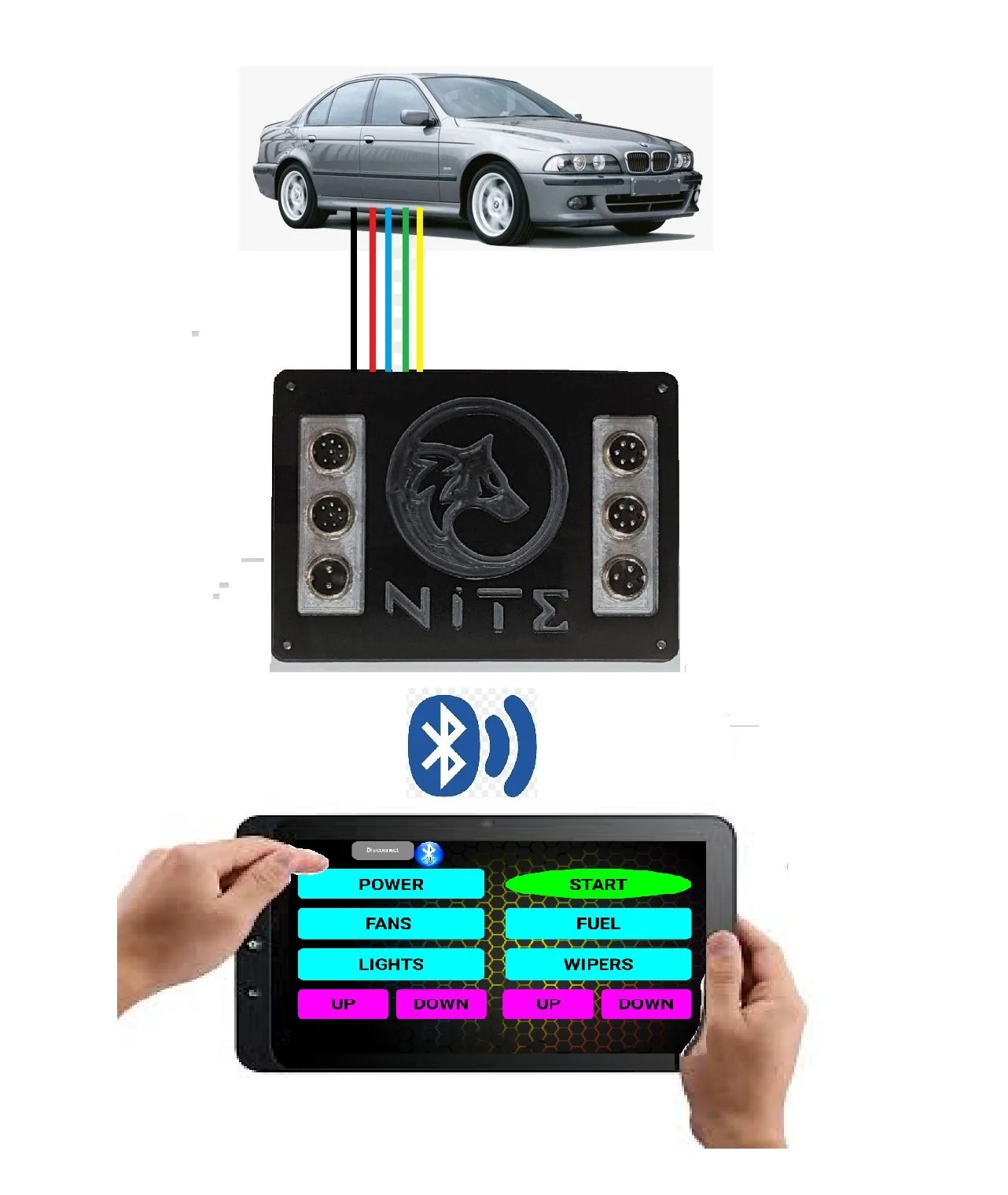

The Ember is wired directly to the car but connects to the touch device via Bluetooth. The app includes buttons depending on the package you purchase.

The basic “Lights Only” app includes:

Left Signal
Right Signal
Running Lights
Aux/Fog

Headlights
High Beams
Reverse
Hazards

*Brake lights work with input signal from pedal

Expand

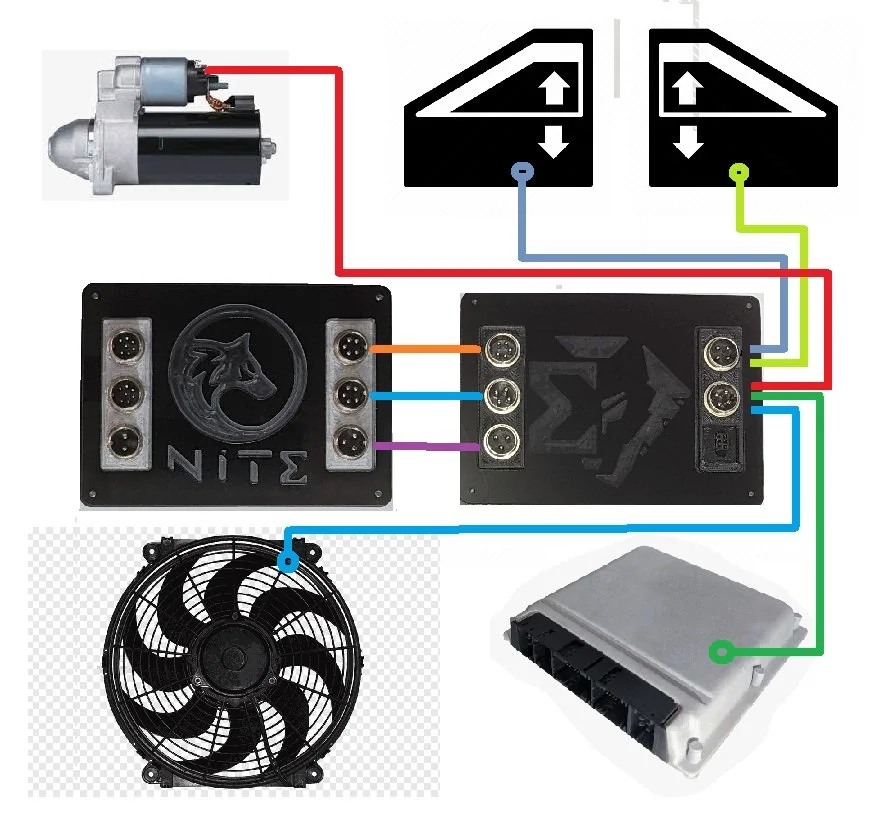

Evoke expands your touch screen controls by allowing up to 8 more outputs. The power and inputs are all built in to the ember. Once plugged in it is ready to go. Control main power, windows, starter and fans.

Personal Touch

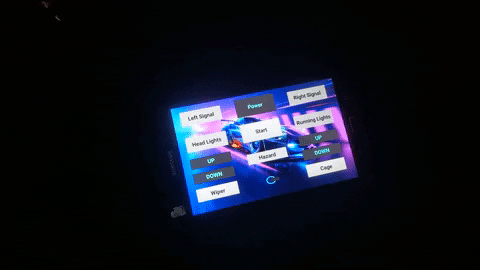

The units pairs with a password protected app. The touch interface can be downloaded to any sized device and is meant to be mounted in the vehicle permanently. But it is not necessary. Full control can be had with your smart phone. This also works great as a backup. The stock app comes with all the buttons you need depending on your setup. Front and Rear lights are separated out. This was designed with flexibility in mind. If all you want is Tail lights then that is all you have to hookup. The pins are there if you ever want to expand. Build at your pace.
